Structure of Combined Weighing And Packaging Machine With Vacuum Feeder

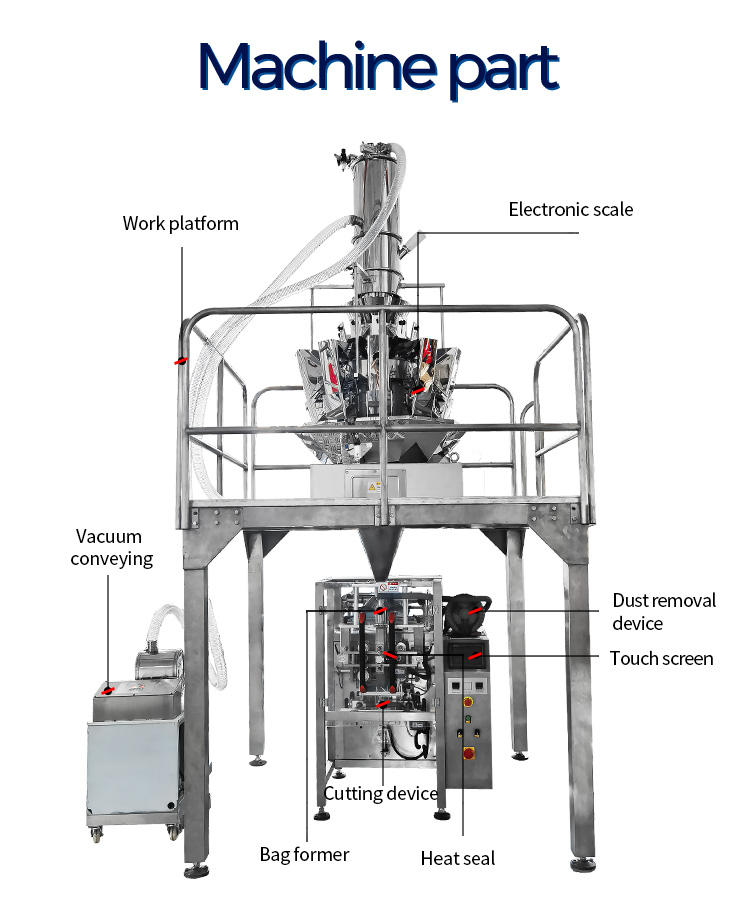

Combined weighing and packaging machine with a vacuum feeder is a sophisticated packaging solution that integrates both weighing and packaging functions. It consists of several key components, each serving a specific purpose in the packaging process. Here is an overview of the typical structure of a combined weighing and packaging machine with a vacuum feeder :

1.Vacuum Feeder:

The vacuum feeder is an essential component that feeds the product into the packaging machine. It uses a vacuum system to transport the product from the supply source, such as a storage hopper or silo, to the weighing and packaging section. The vacuum feeder ensures a continuous and controlled flow of the product for accurate weighing and packaging.

2.Weighing System:

The weighing system is responsible for accurately measuring and dispensing the desired quantity of the product. It typically consists of multiple weighing hoppers or scales that are connected to load cells for precise weight measurement. These hoppers are filled with the product from the vacuum feeder, and the weight is determined based on the load cell readings.

3.Control Panel:

The control panel houses the user interface and control system of the machine. It allows operators to set parameters, monitor the packaging process, and make adjustments as needed. The control panel provides functionality for selecting packaging options, adjusting weight targets, controlling filling speed, and managing other relevant settings.

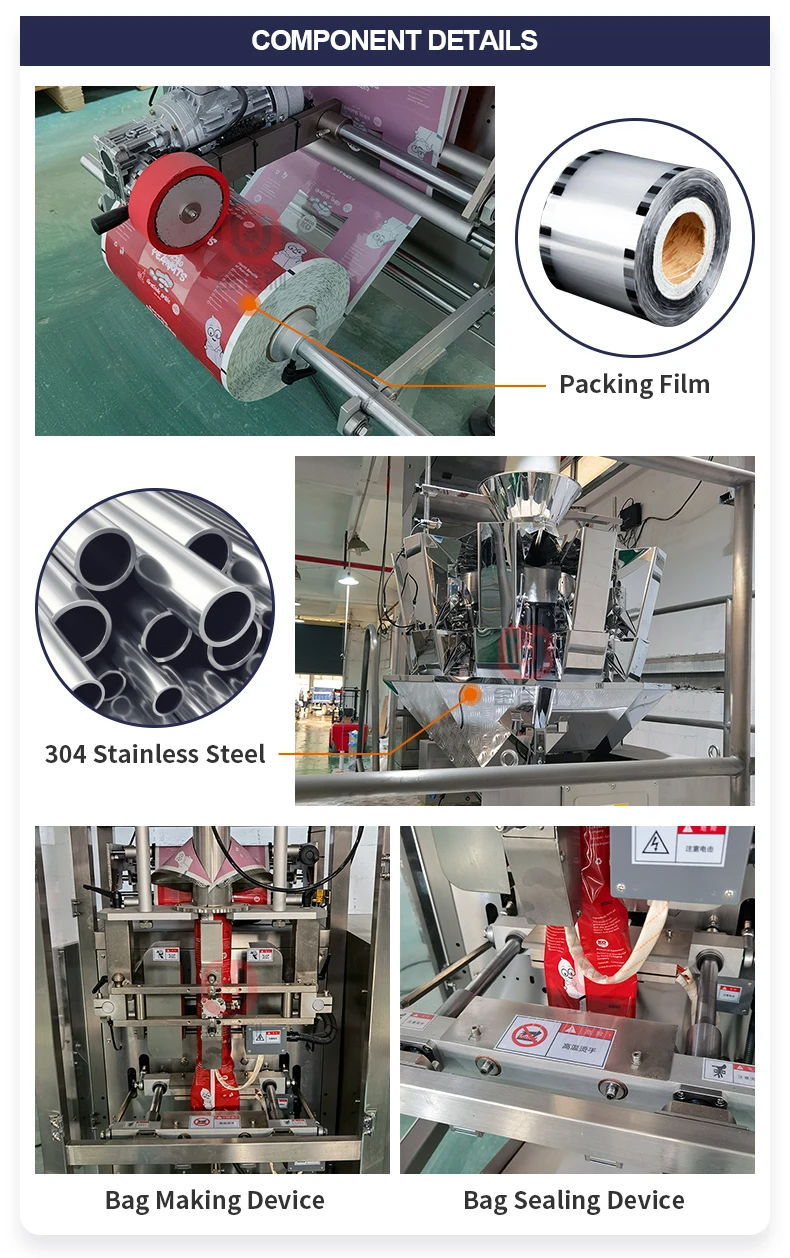

4.Packaging Section:

The packaging section of the machine is where the weighed product is filled into the packaging material. It typically includes a vertical form-fill-seal (VFFS) or horizontal form-fill-seal (HFFS) system, depending on the specific design. The packaging material, such as plastic film or bags, is formed, filled with the weighed product, and then sealed to create the final packaged units.

5.Conveyor System:

A conveyor system is often integrated into the structure to facilitate the smooth movement of the product through the different stages of the packaging process. It helps transport the product from the vacuum feeder to the weighing system, and then to the packaging section for filling and sealing. The conveyor system ensures a continuous and efficient flow of the product during packaging.

The specific structure and design of a combined weighing and packaging machine with a vacuum feeder may vary depending on the manufacturer and the specific requirements of the application. However, the key components mentioned above are typically present to enable accurate weighing, controlled feeding, and efficient packaging of the product.
