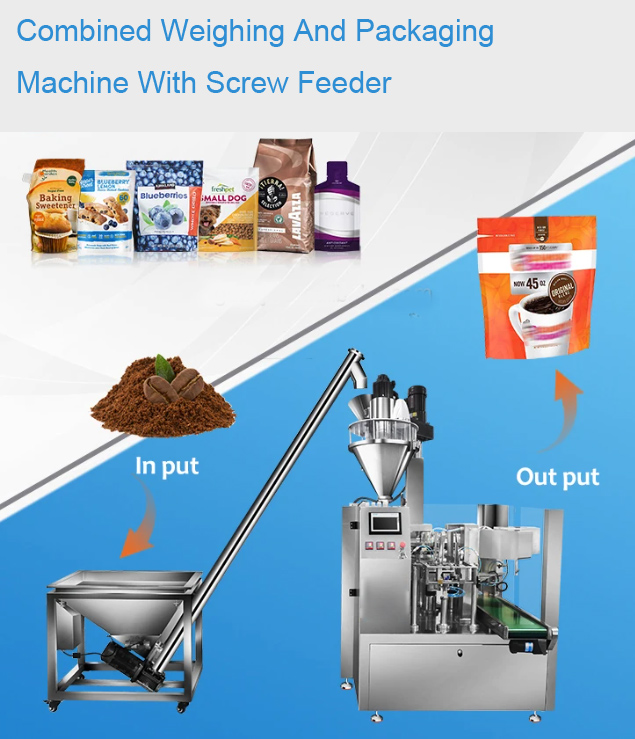

What is a combined weighing and packaging machine with a screw feeder?
Combined weighing and packaging machine with a screw feeder is a specialized system used for accurately weighing and packaging bulk materials using a screw feeder as the feeding mechanism. This type of machine is commonly used in industries such as food processing, pharmaceuticals, chemicals, and agricultural products.
How does combined weighing and packaging machine with a screw feeder work?
Here's how the combined weighing and packaging machine with a screw feeder typically works:
1.Material Feeding: The bulk material to be weighed and packaged is stored in a hopper or a bulk storage area. The screw feeder, often equipped with a variable speed motor, is responsible for extracting the material from the hopper and delivering it to the weighing system.
2.Weighing System: The machine features a weighing system that accurately measures the desired quantity of the material. This can be achieved through load cells or other weighing mechanisms integrated into the system. The weighing system ensures precise measurement and control of the material flow.
3.Packaging: Once the desired weight is achieved, the material is discharged from the weighing system into the packaging component of the machine. This can be a bagging machine, a pouch filling machine, or any other packaging equipment suitable for the specific application.
Live video
Features of combined weighing and packaging machine with a screw feeder
1. Increased Productivity: By automating the weighing and packaging processes, this machine can significantly increase productivity compared to manual operations. It can handle higher volumes of product with consistent accuracy and speed.
2. Improved Accuracy: The integrated weighing system ensures accurate and consistent product weights, minimizing product giveaway and improving quality control.
3. Reduced Labor Costs: With automated operation, the machine requires minimal manual intervention, resulting in reduced labor costs and improved cost-effectiveness.
4. Versatile Applications: The combined weighing and packaging machine can handle a wide range of products, including powders, granules, pellets, and liquids, making it suitable for various industries.
5. Hygienic Design: Many models are designed with hygienic features, such as stainless steel construction, to meet the requirements of sanitary environments in the food and pharmaceutical industries.
Combined weighing and packaging machine with a screw feeder specifications
| Model | GX-220DKF | GX-320DKF | GX-420DKF |
| Max roll film width | 220mm | 320mm | 420mm |
| Bag Length | 10-150mm | 10-190mm | 10-260mm |
| Bag Width | 20-100mm | 60-150MM | 120-200MM |
| Filling range | 1-99G | 10-500G | 100-1000G |
| Dimension(L*W*H) | 520*420*1590mm | 640*480*1700mm | 890*490*1850mm |
| Power | 220V/110V 50HZ/60HZ 550W | 220V/110V 50HZ/60HZ 600W | |
| Weight | 70KG | 94KG | 101KG |

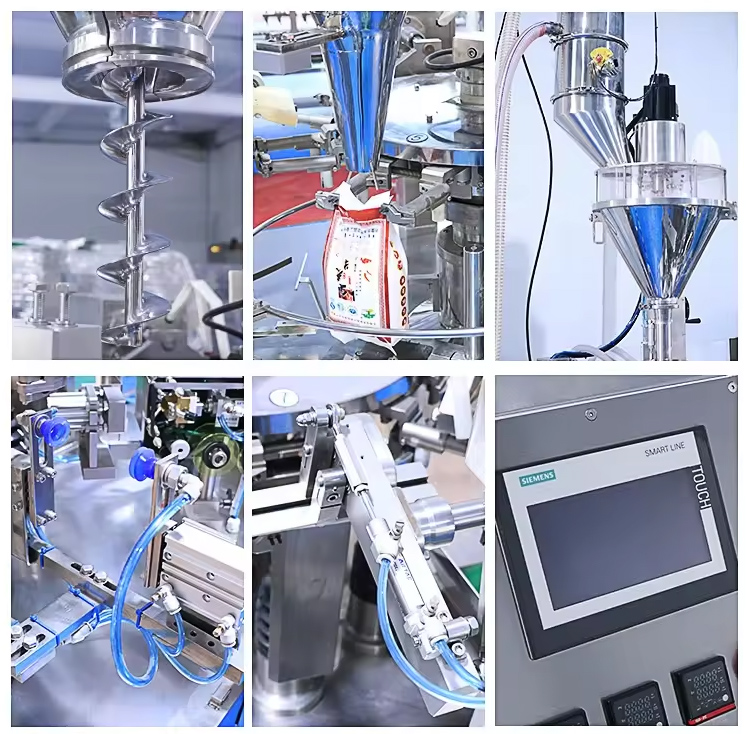

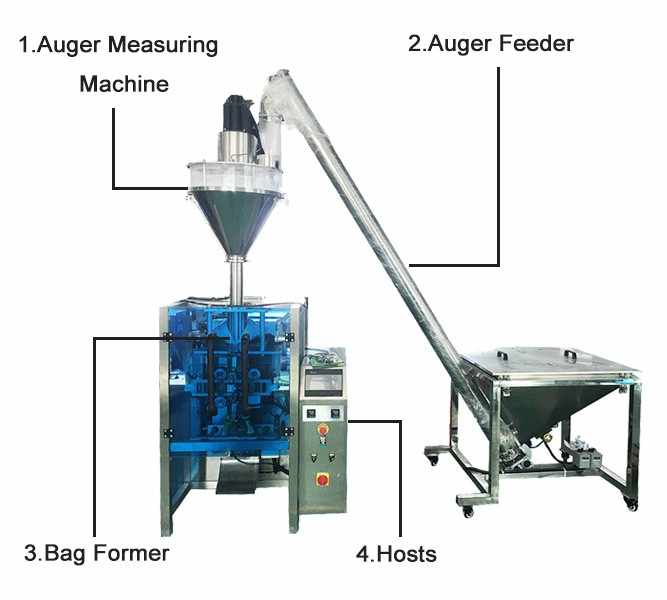

Structure of combined weighing and packaging machine with a screw feeder
1. Screw Feeder: The screw feeder is a key component of the machine responsible for accurately measuring and delivering the product to the weighing system. It consists of a rotating screw conveyor enclosed within a cylindrical housing. As the screw rotates, it gently conveys the product from the bulk supply to the weighing chamber.
2. Weighing System: The weighing system is designed to accurately measure the weight of the product. It typically employs load cells or strain gauges to sense the weight of the product and transmit data to a controller. The controller analyzes the weight data and adjusts the screw feeder to achieve the desired weight.
3. Packaging System: The packaging system is responsible for forming, filling, and sealing packages with the weighed product. It can be equipped with various types of packaging machines, such as bagging machines, pouch filling machines, or carton filling machines, depending on the packaging format and the product characteristics.
4. Control System: The control system coordinates the operation of the screw feeder, weighing system, and packaging system. It monitors the weight data, adjusts the feeding rate, and triggers the packaging process. The control system can be programmed to handle different product weights, packaging formats, and production rates.
What are the applications of combined weighing and packaging machine with a screw feeder?
- Packaging of powders, granules, and pellets in food, pharmaceutical, and chemical industries.
- Packaging of liquids and viscous products in the food and cosmetic industries.
- Bagging of grains, seeds, and fertilizers in the agricultural industry.
- Filling cartons or containers with powders or liquids in the consumer goods industry.
- Packaging of pharmaceuticals in blister packs, vials, and bottles.
Combined weighing and packaging machine with a screw feeder price
The price of a combined weighing and packaging machine with a screw feeder can vary significantly based on several factors, including the machine's specifications, capacity, features, and the manufacturer or supplier. Additionally, market conditions, geographic location, and any additional customization or optional components can also impact the price.
As a rough estimate, combined weighing and packaging machines with a screw feeder can range in price from several thousand dollars for smaller, lower-capacity machines to tens or hundreds of thousands of dollars for larger, high-capacity systems with advanced features.
Combined weighing and packaging machine with a screw feeder manufacturer
Xinxiang Dahan is a manufacturer specializing in the manufacturing of combined weighing and packaging machine with a screw feeder. They are committed to providing high-quality and efficient packaging solutions, which are widely used in food, pharmaceutical, chemical and other industries to help customers improve production. efficiency and product packaging quality.
