How do Vertical Form Fill Seal Packing Machines Work?

Vertical form fill seal packing machines are commonly used in the packaging industry to automatically form, fill, and seal bags or pouches. Here is a general overview of how do vertical form fill seal packing machines packing machines work.

Vertical form fill seal packing machines working principle

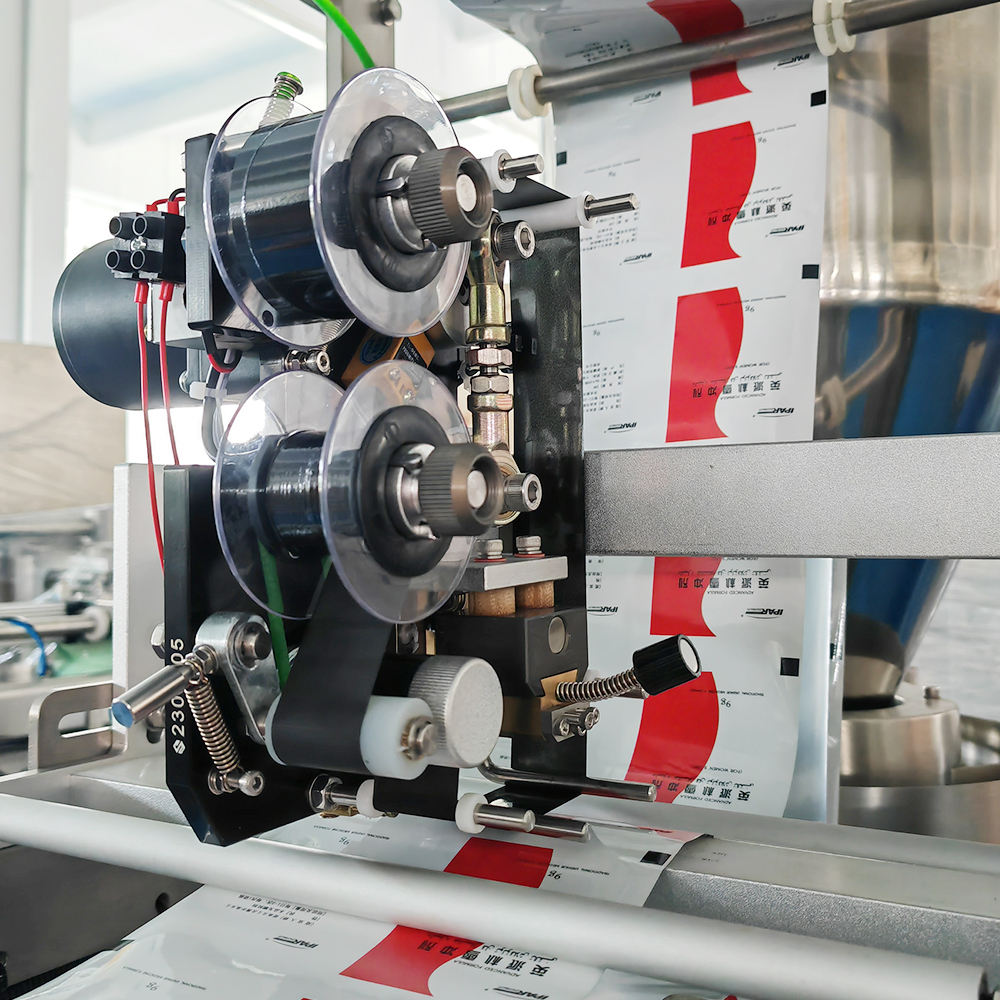

1.Film Unwinding: The packaging material, typically a roll of flat film or a preformed pouch, is unwound from a reel and fed into the machine.

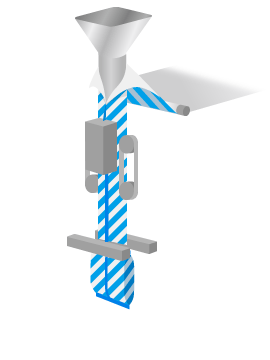

2.Forming the Bag: The film is guided through a forming tube or collar, where it is shaped into a tube or a pouch. The edges of the film are sealed together to create a continuous vertical tube.

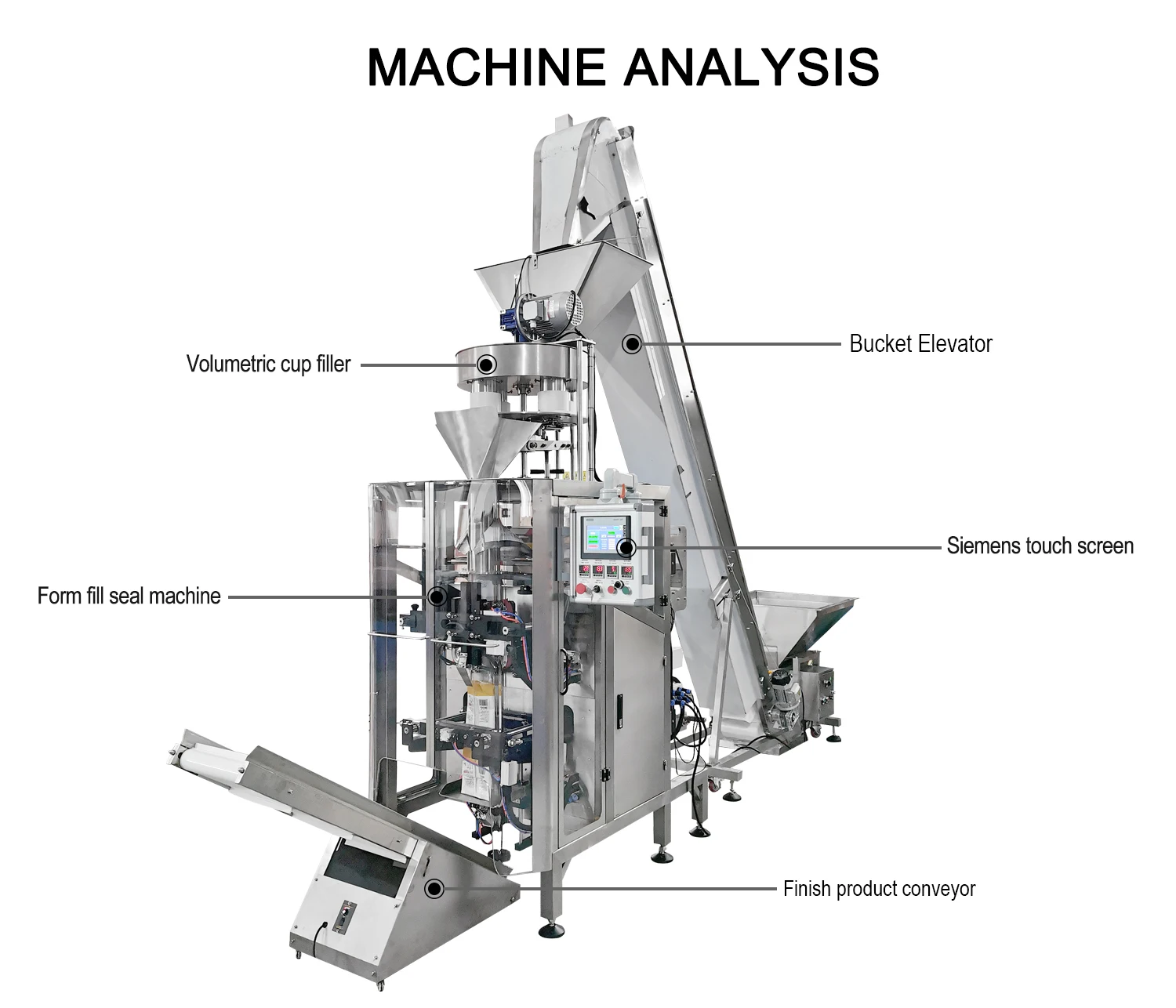

3.Product Filling: The vertical tube is then filled with the desired product through a product dosing system. The dosing system can be volumetric, auger-based, weigher-based, or any other suitable mechanism depending on the product characteristics and packaging requirements.

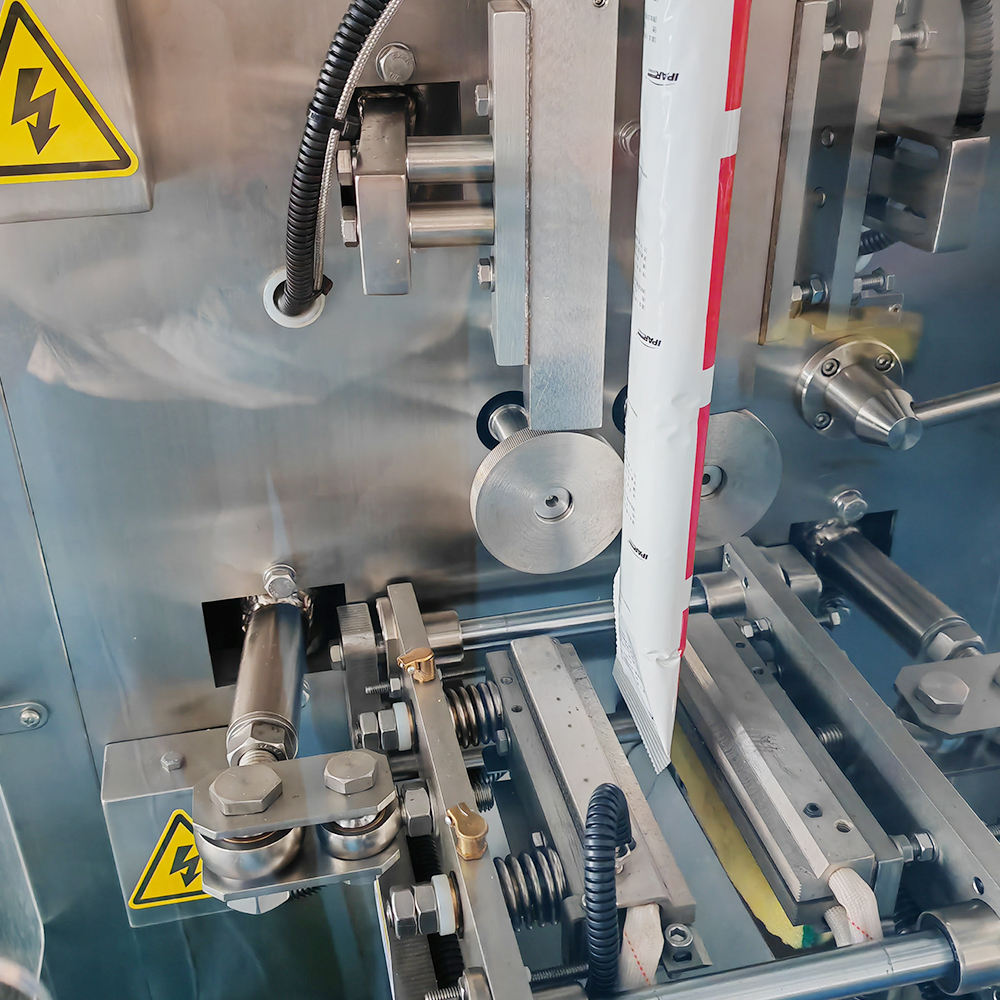

4.Bag Sealing: Once the product is filled, the top of the tube is sealed horizontally to create a sealed bag/pouch. The sealing process can involve heat sealing, ultrasonic sealing, or other sealing methods depending on the packaging material and product.

5.Bag Cutting: The sealed bag is then cut off from the continuous tube. The cutting mechanism can be a rotary knife, a reciprocating knife, or a laser cutter, depending on the machine design.

6.Bag Discharge: The finished bags are discharged from the machine, usually onto a conveyor or into a collection bin for further handling or packaging.

7.Control System: VFFS packing machines are equipped with a control system that regulates and monitors the entire packaging process. The control system includes a human-machine interface (HMI) or a programmable logic controller (PLC) that allows operators to set parameters, monitor machine status, and adjust settings as needed.

Vertical form fill seal packing machines offer high-speed, efficient, and flexible packaging solutions for a wide range of products. They can handle various packaging materials, including flexible films, laminates, and preformed pouches. The specific features and capabilities of VFFS machines may vary depending on the model and manufacturer.

It's important to note that the operation ofVertical form fill seal packing machines may involve additional steps or variations depending on the specific machine configuration and the requirements of the product being packaged.
