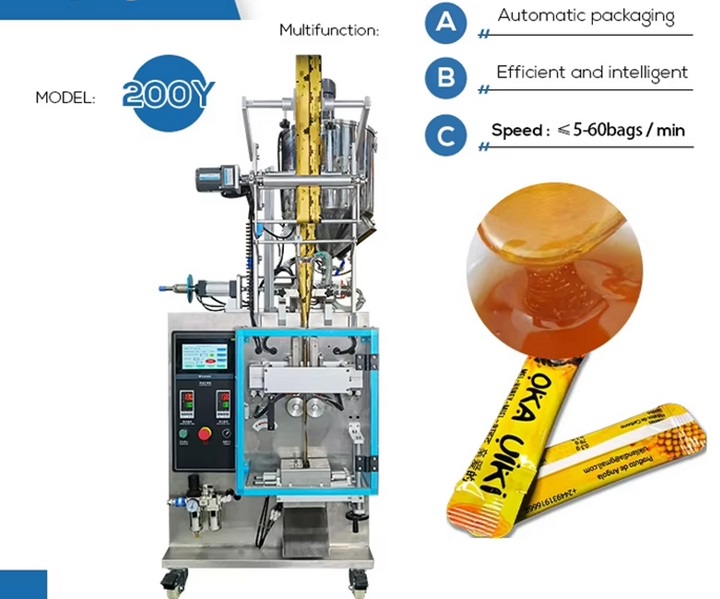

Juice vertical for Packaging Machine

Juice vertical for Packaging Machine is a vertical structure with fully automatic operation function. Juice vertical for Packaging Machine used for juice, green tea beverages, milk tea, soy milk, nut milk, juice puree, fruit puree and other types of juice beverages.

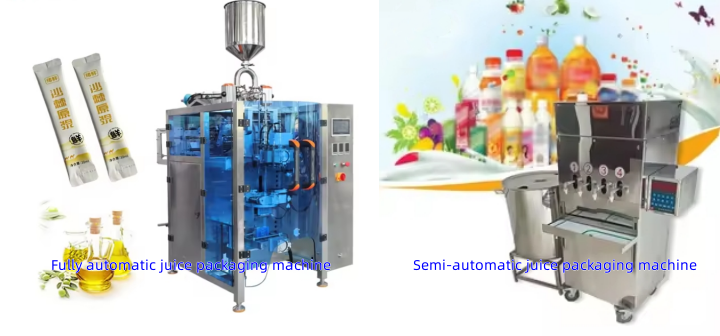

Supply fully automatic and semi-automatic juice packaging machines

-Fully automatic juice vertical packaging machines can automatically complete the filling, sealing, conveying and other processes of juice without manual operation. They have the characteristics of high production efficiency, good packaging quality and simple operation.

-Semi-automatic juice vertical packaging machines require manual operation, such as pouring juice into the filling machine or carrying the packaged juice to the designated location. Compared with fully automatic juice vertical packaging machines, semi-automatic juice vertical packaging machines have lower production efficiency, but are also cheaper.

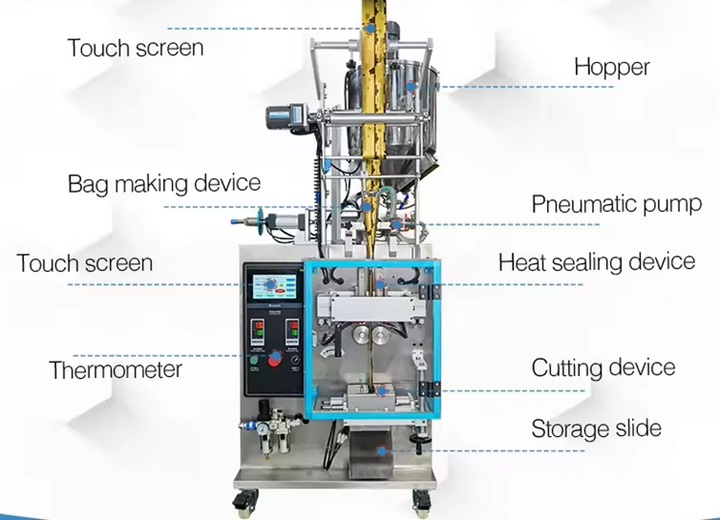

Fully automatic juice vertical packaging machine composition

Material tank: used to store juice.

Filling machine: used to quantitatively fill juice into bags.

Sealing machine: used to seal bags.

Conveyor: used to transport packaged juice.

Control system: used to control the operation of the entire machine.

How does the fully automatic juice vertical packaging machine work?

1. The juice is transported from the material tank to the filling machine.

2. The filling machine quantitatively fills the juice into pre-made bags.

3. The sealing machine seals the bag.

4. The conveyor transports the packaged juice out.

What products can the juice automatic vertical packaging machine adapt to?

Juice: various juices, such as orange juice, apple juice, grape juice, watermelon juice, etc.

Beverages: including juice drinks, fruit-flavored drinks, functional drinks, etc.

Soda/carbonated drinks: such as cola, soda, carbonated water, etc.

Tea drinks: fruit-flavored tea drinks, green tea drinks, milk tea, etc.

Fruit-flavored yogurt/milk drinks: including fruit-flavored yogurt, fruit-flavored milk drinks, etc.

Energy drinks: such as functional juice drinks, sports drinks, etc.

Plant protein drinks: such as soy milk, nut milk, etc.

Mixed juice drinks: mixed drinks of multiple juices.

Baby food: such as juice puree, fruit puree, etc.

What are the advantages of fully automatic juice vertical packaging machine

Efficiency: Fully automatic operation can greatly improve production efficiency and reduce manpower input.

Accuracy: The precise liquid filling system can accurately control the filling volume of juice and improve the consistency and quality of the product.

Automatic operation: The fully automatic vertical packaging machine has functions such as automatic container supply, automatic filling, automatic sealing and automatic sealing, which reduces human errors and inconsistencies.

Diversified adaptability: It is suitable for containers of different specifications and capacities, and can fill various juice and beverage products.

Sanitation and safety: Equipped with a cleaning and disinfection system to ensure the hygiene and food safety of the packaging process.

Reliability: The fully automatic vertical packaging machine adopts a stable structure and high-quality components, has high reliability and durability, can operate stably for a long time, and reduces maintenance and failure rates.

Parameter

Model NO.	DS-200Y
Measuring	Liquid Filling Pump
Bag Shape	Back Sealing/3 Sides Sealing/4 Sides Sealing
Packing Speed	30~80 bags/min
Roll Width	Max.200mm
Bag Length	30~180 mm
Bag Width	15~100 mm
Machine Size	L)640*W)700*H)1580mm
Machine Weight	300kg
Power	220V,50HZ,1.2KVA

How to choose a juice vertical packaging machine

When choosing a juice vertical packaging machine, you need to consider the following factors:

-Production scale: If your production scale is large, it is recommended to choose a fully automatic juice vertical packaging machine, which can improve production efficiency. If your production scale is small, you can choose a semi-automatic juice vertical packaging machine to save costs.

-Budget: The price of a fully automatic juice vertical packaging machine is higher than that of a semi-automatic juice vertical packaging machine, so you need to choose according to your budget.

-Operation difficulty: The operation difficulty of a fully automatic juice vertical packaging machine is relatively low, and only simple training is required. Semi-automatic juice vertical packaging machines require manual operation of some operations, so the worker's operating proficiency needs to be considered.
