What is vertical automatic packaging machine?
Vertical automatic packaging machine, also known as a vertical form-fill-seal (VFFS) machine, is a type of packaging equipment that automates the process of forming bags, filling them with products, and sealing them vertically. It is widely used in various industries for packaging a wide range of products, including powders, granules, liquids, and solids.
Vertical automatic packaging machine can accommodate different product sizes and packaging formats, allowing for flexibility in packaging various types of products.
Vertical automatic packaging machine for sale
There are several types of vertical automatic packaging machines available, each designed to suit different product requirements and packaging formats. Some common types include:
-
Vertical Form Fill Seal Packing Machines

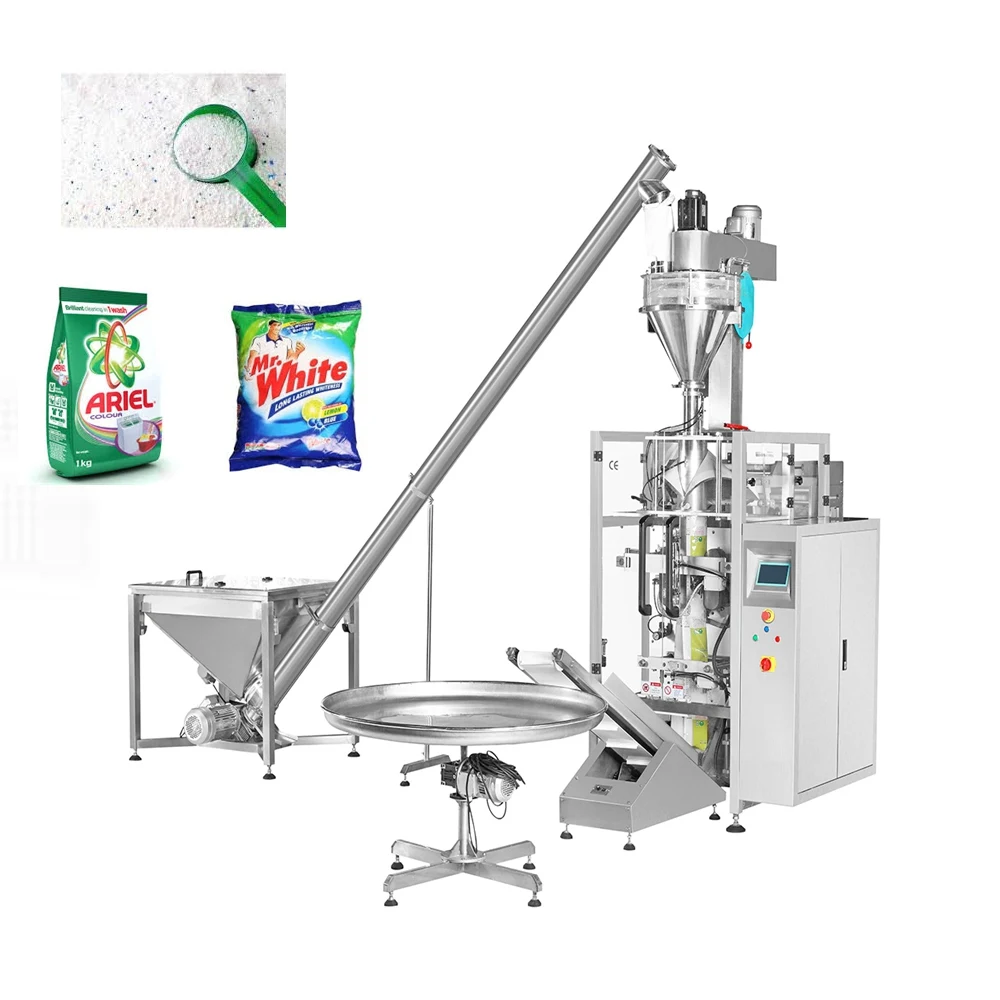

This type of machine forms a bag from a roll of packaging film, fills it with the product, and seals it. VFFS machines are versatile and can handle a wide range of products, such as powders, granules, liquids, and solids.
-
Automatic Masala Pouch Packing Machine
This type of machine is used for producing pouch-style packaging, which can be stand-up or flat. Pouch packaging machines are versatile and can handle a wide range of products, including liquids, powders, granules, and solids.
-
Automatic Liquid Sachet Packing Machine

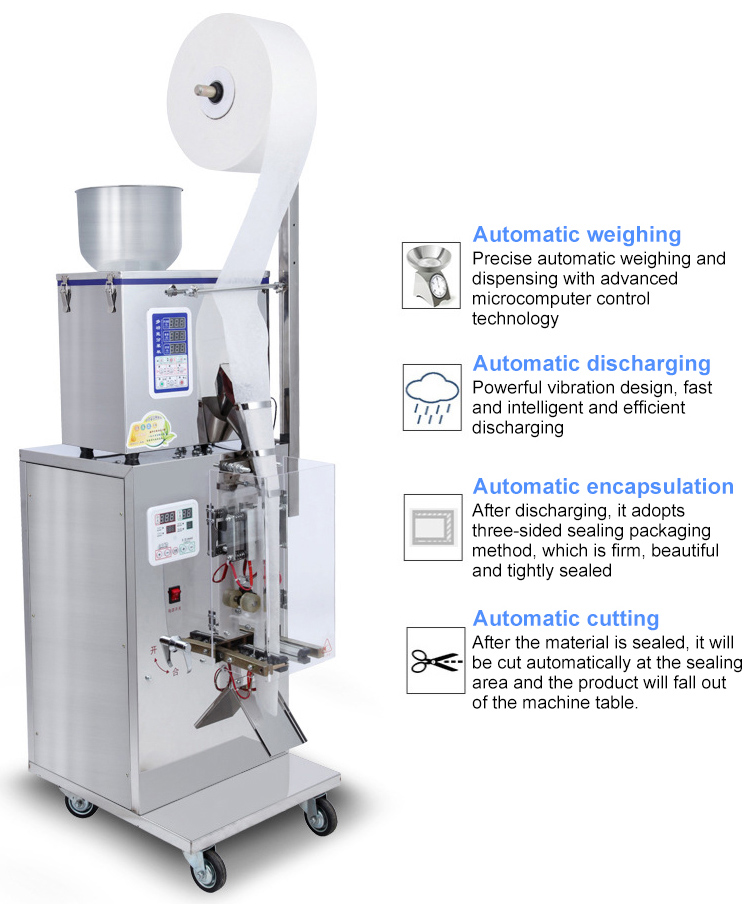

These are ideal for packaging long and narrow products, such as single-use liquid or powder sachets. They are commonly used for packaging products like instant coffee, sugar, energy drinks, and seasoning powders.
-
Vertical packaging machine
Vertical packaging machine is a kind of equipment used to pack and seal products in vertical direction, suitable for different types of products such as powder, granules, liquids, etc.
-
Horizontal packaging machine
Horizontal packaging machine is suitable for various types of products, including beverages, cosmetics, cleaning products and other industries.
View
-
Vertical filling and sealing packaging machine
Vertical filling and sealing packaging machine is suitable for various types of products, including liquid, semi-solid and powder products etc.
View

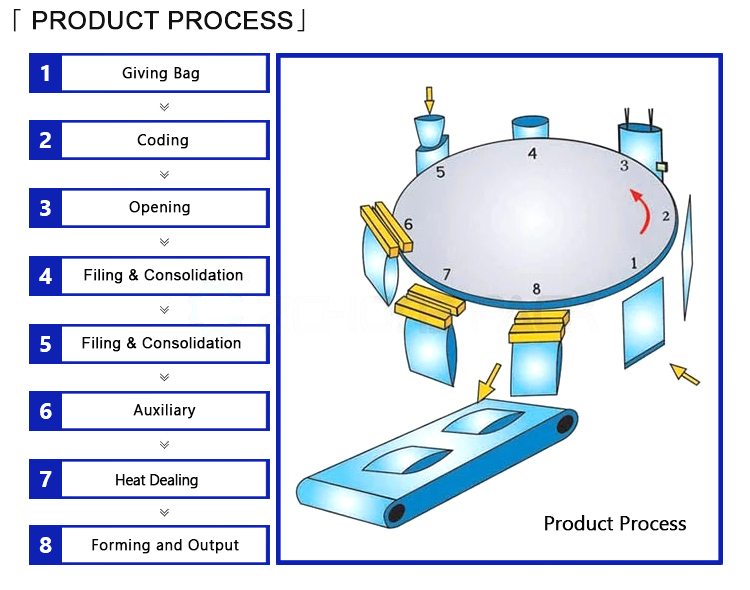

How does vertical automatic packaging machine work?
During the packaging process, the material is fed through a stretch feeding device. The plastic film is formed into a cylinder through the film cylinder, and the sides are sealed by a heat longitudinal sealing device. At the same time, the packaging is injected into the bag. The horizontal sealing mechanism cuts the length and position of the packaging according to the color-coded photoelectric detection device. The working principle of the vertical packaging machine: The roll film placed on the supporting device is wound around the guide roller group tensioning device. After the photoelectric detection control device detects the position of the trademark pattern on the packaging material, it is rolled into a film through the former. Film cylinder wrapping.

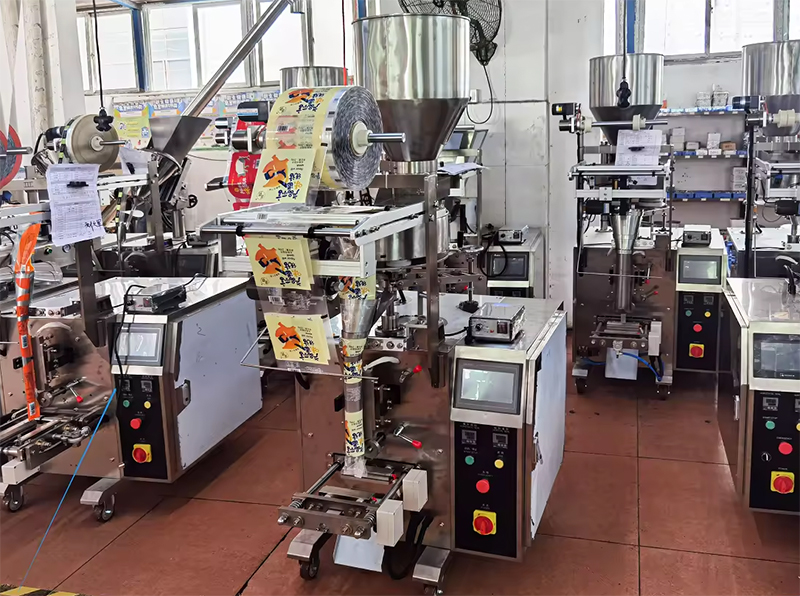

Work live shooting
What are the characteristics of vertical automatic packaging machine？
These characteristics of the vertical automatic packaging machine make it the preferred equipment for packaging operations in many industries. It can improve production efficiency, ensure packaging quality, and adapt to production environments of different scales and needs. The main features are as follows:
1. High-precision structure, easy operation and maintenance.
2. Made of 304 stainless steel, in line with GMP requirements, suitable for high-standard food packaging.
3. Chinese and English screen display, PLC control, servo motor.
4. Horizontal and vertical temperature control, suitable for various mixed film and PE film packaging materials.
5. Diversified applications, can provide customers with pillow bags, buckle bags, hanging bags, stand-up bags, perforated bags, etc.
What are the application scopes of vertical automatic packaging machines?
The vertical fully automatic packaging machine is a packaging equipment with strong versatility and wide application range. It is mainly used for automatic packaging of powdered and granular materials, including but not limited to the following aspects:
Food industry: used for packaging various types of powdered foods, such as flour, milk powder, condiments, instant beverage powder, etc.
Pharmaceutical industry: suitable for packaging of pharmaceutical powders and granular dosage forms, such as Chinese medicine granules, health care powder, etc.
Chemical industry: can be used for packaging of chemical raw materials, pigments, powder additives, etc.
Agricultural field: packaging of granular agricultural products such as pesticides and fertilizers.
Cosmetic industry: suitable for packaging of powdered cosmetics, such as foundation, loose powder, etc.
Other industries: can also be used to package other granular or powdered materials, such as plastic granules, seeds, animal feed, etc.
Vertical automatic packaging machine specifications
| Model | GX-220DKF | GX-320DKF | GX-420DKF |
| Max roll film width | 220mm | 320mm | 420mm |
| Bag Length | 10-150mm | 10-190mm | 10-260mm |
| Bag Width | 20-100mm | 60-150MM | 120-200MM |
| Filling range | 1-99G | 10-500G | 100-1000G |
| Dimension(L*W*H) | 520*420*1590mm | 640*480*1700mm | 890*490*1850mm |
| Power | 220V/110V 50HZ/60HZ 550W | 220V/110V 50HZ/60HZ 600W | |
| Weight | 0KG | 94KG | 101KG |

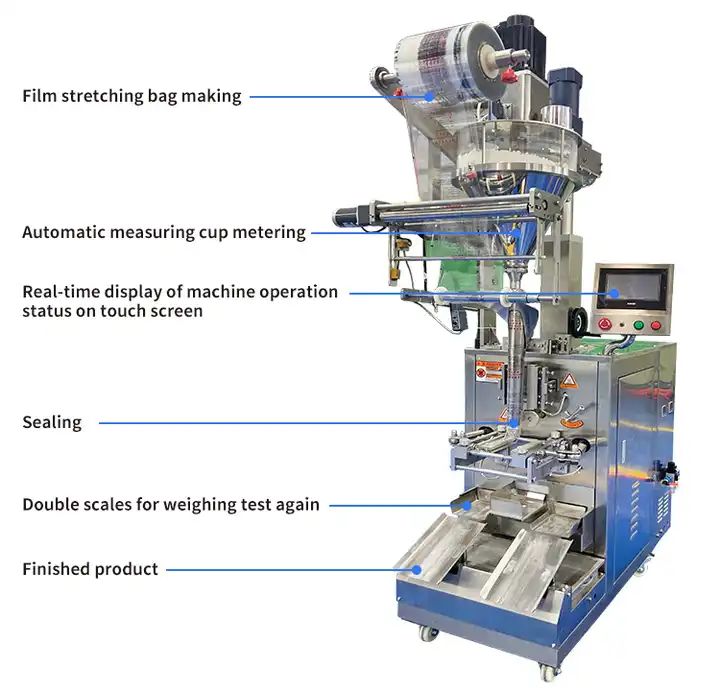

Structure of vertical automatic packaging machine
The structural design of vertical automatic packaging machines is usually carefully optimized to achieve efficient and accurate packaging work. Its structure usually includes the following main parts:
Mechanical frame: used to support and fix other components, usually made of metal materials.
Transmission system: including motors, reducers, transmission shafts and other components, used to drive the machine.
Packaging actuator: including formers, sealers and other components, used to perform actual packaging operations.
Customer case
Case 1: Food Manufacturing Industry - Candy Packaging
Packaging products: various candies (such as hard candies, soft candies, chocolates, etc.)
Packaging volume: 50-100 packs/minute
Customer background:
A large candy manufacturer is facing the dual pressures of improving production efficiency and controlling packaging costs.
The original packaging line is inefficient and cannot meet the growing order demand.
The cost of manual packaging is high, and it is difficult to ensure the consistency of packaging quality.
Solution:
Introducing multiple high-speed vertical automatic packaging machines to achieve automatic metering, packaging and sealing of candies.
Adopting advanced control systems to ensure packaging accuracy and speed.
Optimizing packaging materials and reducing packaging costs.
Customer benefits:
Packing efficiency increased by more than 50%, significantly shortening delivery cycle.
Packaging costs reduced by 20%, effectively increasing profit margins.
The packaging quality has been significantly improved, and the market competitiveness of products has been enhanced.
Case 2: Daily chemical industry - laundry detergent packaging
Packaging products: laundry detergent, shampoo and other liquid products
Packaging volume: 30-50 packs/minute
Customer background:
A well-known daily chemical company needs to add a new packaging production line to meet the market demand for small-package laundry detergent.
There are high requirements for packaging speed, accuracy and stability.
Hope to realize the automation and intelligence of the packaging process.
Solution:
Customized vertical automatic packaging machine, equipped with liquid filling system and precise metering device.
Adopt PLC control system to realize the automation and intelligence of the packaging process.
Equipped with fault detection and alarm system to ensure the stable operation of the production line.
Customer benefits:
Meet the market demand for small-package laundry detergent and expand the product line.
High packaging accuracy reduces material waste.
The production line runs stably and reduces production costs.
Case 3: Pharmaceutical Industry - Pharmaceutical Packaging
Packaging products: Tablets, capsules, granules and other drugs
Packaging volume: 100-200 packs/minute
Customer background:
A large pharmaceutical company plans to transform the existing packaging line to improve the efficiency of drug packaging and reduce labor costs.
There are strict requirements for packaging speed, hygiene standards and anti-counterfeiting functions.
Solution:
Introduce vertical automatic packaging machines that meet GMP standards to ensure the hygiene and safety of drug packaging.
Use high-speed packaging technology to greatly improve packaging efficiency.
Equipped with anti-counterfeiting inkjet system to improve product anti-counterfeiting ability.
Customer benefits:
The packaging efficiency has been greatly improved, meeting the needs of drug production.
Reduce labor costs and improve corporate benefits.
Improve product anti-counterfeiting ability and protect consumer rights.
The vertical packaging machine can package pillow bags, triangle bags, 3-side sealed bags, stick bags, and 4-side sealed bags. If you need to customize a special-shaped bag packaging machine, you can contact us directly. We will design and customize a vertical packaging machine suitable for you based on your specific requirements and product characteristics to meet your needs.
Vertical Automatic Packaging Machine price
Da han is a manufacturer of vertical automatic packaging machines. We are committed to providing high-quality and efficient packaging solutions to meet the needs of customers in different industries. Our vertical automatic packaging machines are manufactured with advanced technology and high-quality materials, and are characterized by strong stability, easy operation and high packaging efficiency. The price of our vertical automatic packaging machines varies according to the model, configuration and customer needs. The price is generally between $495.00-$12,000.00. We have a professional technical team and a complete after-sales service system to provide customers with a full range of support and services. Whether you are a food manufacturer, cosmetics company, pharmaceutical manufacturer or an enterprise in other industries, we are willing to cooperate with you to develop together and create a better future. Welcome to contact us for more information and quotation details about vertical automatic packaging machines.
